Exploring the World of Custom Lattice Boom Configurations
Lattice boom crawler cranes are incredibly versatile, but the true power and flexibility often come from custom lattice boom configurations. While standard boom lengths and jib setups cover many lifting needs, experienced heavy-lift professionals frequently turn to tailored configurations to tackle complex, high-stakes, or highly efficient lifts that standard setups cannot achieve optimally.
Custom lattice boom configurations represent one of the most sophisticated aspects of modern crawler crane operations, blending engineering precision, project-specific planning, and deep operational expertise.
Why Custom Lattice Boom Configurations Are Used
Standard boom lengths work well for everyday lifts, but many projects demand something more specialized:
- Extreme Reach Requirements: Lifting over tall obstacles or reaching extreme heights on high-rise or wind projects
- Tight Radius Constraints: Working in congested industrial plants or urban environments
- Heavy Loads at Distance: Moving massive components where standard capacity drops off too quickly
- Multi-Crane Coordination: Synchronized lifts requiring precise boom and jib geometry
- Site-Specific Challenges: Limited crane positioning, soft ground, or unusual load shapes
Custom configurations allow contractors to optimize the crane’s performance for the exact demands of each lift rather than forcing the project to fit standard equipment.
Common Types of Custom Lattice Boom Setups
1. Extended Main Boom Configurations
Adding extra lattice sections to create longer main booms (sometimes exceeding 100–120 meters). This increases tip height and reach while requiring careful stability calculations and often additional counterweight.
2. Luffing Jib Combinations
One of the most popular custom setups. A luffing jib attached to a long main boom provides dynamic angle adjustment, allowing operators to:
- Clear adjacent structures
- Work at varying radii without moving the crane
- Maintain better load control in windy conditions
3. Super-Lift and Derrick Attachments
Advanced systems that use a separate derrick mast or super-lift tray positioned behind the crane. These dramatically increase capacity by creating a much larger counterweight moment arm.
4. Hybrid and Specialized Jib Setups
- Fixed jib + luffing jib combinations
- Tower attachments for extreme height
- Custom boom inserts for specific load paths
5. Short Boom / Heavy Lift Configurations
Sometimes the custom choice is actually a shorter boom with maximum counterweight for ultra-heavy lifts at short radii, common in refinery module installations.
Engineering and Planning Process
Creating a safe custom lattice boom configuration involves:
- Detailed load chart analysis for every possible combination
- Structural engineering review of boom strength and stress points
- Ground bearing pressure calculations
- Wind load assessments
- Rigging and load path planning
- Approval from the crane manufacturer or third-party engineer
Modern projects often use specialized lift planning software and 3D modeling to visualize and validate custom configurations before physical assembly.
Benefits of Custom Lattice Boom Configurations
- Increased Efficiency: Fewer crane relocations and optimized lift cycles
- Enhanced Safety: Better load control and reduced risk when properly engineered
- Project Feasibility: Making “impossible” lifts possible within site constraints
- Cost Savings: Reducing the need for multiple cranes or expensive alternatives
- Competitive Advantage: Winning bids on complex projects others cannot handle
Challenges and Considerations
Custom configurations are not without drawbacks:
- Longer assembly and disassembly times
- Higher planning and engineering costs
- Increased complexity requiring highly experienced crews
- Greater responsibility on the operator and lift director
- Potential impact on crane utilization rates
Poorly planned custom setups can lead to safety incidents, so only qualified heavy-lift teams should attempt advanced configurations.
Real-World Examples
- Wind Energy: Custom long-boom + luffing jib setups for installing next-generation turbines in tight wind farms

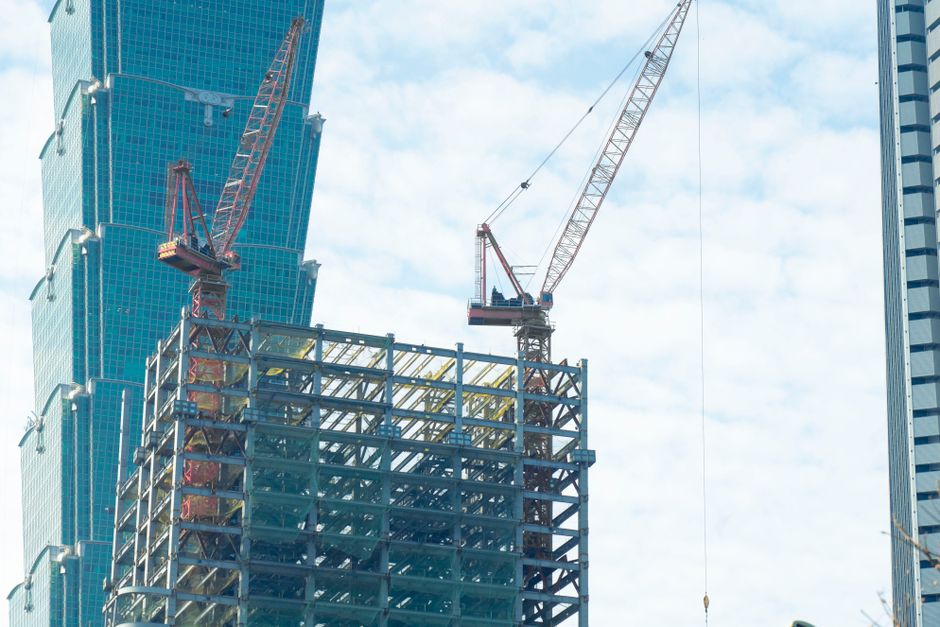

- High-Rise Construction: Extended booms with luffing jibs to reach upper floors while clearing neighboring buildings
- Refinery Projects: Short, heavy counterweighted configurations for massive module lifts in congested plants
- Bridge Construction: Specialized jib setups for precise girder placement over water or highways
Operator Perspective
Experienced crawler crane operators view mastery of custom lattice boom configurations as a career milestone. It requires:
- Deep understanding of load charts
- Strong spatial awareness
- Excellent communication with lift directors and riggers
- Patience during complex assembly processes
Operators who consistently perform well with custom setups are highly sought after and often command premium rates.
Future Trends
- Digital twin technology for virtual testing of custom configurations
- Lighter, stronger materials allowing longer booms with less weight
- Greater automation in boom assembly and pinning
- AI-assisted configuration recommendations based on project parameters
Conclusion
Custom lattice boom configurations represent the art and science of modern heavy lifting. They transform standard crawler cranes into highly specialized tools capable of tackling extraordinary challenges while improving efficiency and safety on complex projects.
For contractors, investing in proper planning and training for custom boom setups often delivers significant returns through faster project delivery and reduced equipment needs. For operators, developing expertise in this area opens doors to the most interesting, challenging, and well-compensated work in the industry.
As construction projects continue to grow in scale and complexity, the ability to create and safely execute custom lattice boom configurations will remain a defining skill in the crawler crane world. The most successful heavy-lift professionals are those who understand not just how to operate the crane — but how to configure it optimally for each unique challenge.
Mastering custom lattice boom configurations is what separates good crawler crane operators from truly exceptional ones.
